3PY - 3 Jaw Independent Power Chuck

The 3-jaw independent chuck is designed for high-speed operation, ensuring smooth performance, robust construction, and exceptional durability. With its high repeatability and strong clamping force, it is an ideal choice for automated production environments.

3-Jaw Independent Chuck is a type of chuck commonly used in machining applications for holding workpieces. Unlike a typical self-centering chuck where the jaws move together, the jaws in an independent chuck move separately, allowing for greater versatility in clamping irregularly shaped or off-center workpieces.

Key Features of 3 Jaw Independent Chuck:

  1. Independent Jaw Movement:
    • Each jaw can be adjusted independently, allowing for non-symmetrical workpiece clamping.
    • Useful for holding irregular or off-center parts.
  2. Power Operation:
    • Uses hydraulic, pneumatic, or electric actuators for quick and efficient clamping.
    • Provides consistent clamping force for better stability.
  3. Material and Durability:
    • Usually made from hardened steel or similar durable materials to withstand heavy machining operations.
  4. Size and Configuration:
    • Available in different diameters and jaw configurations depending on the application.

Applications of 3 Jaw Independent Chuck:

  • Ideal for turning, milling, or grinding operations where irregular workpieces need precision.
  • Common in heavy industries like automotive, aerospace, and shipbuilding for handling complex shapes.

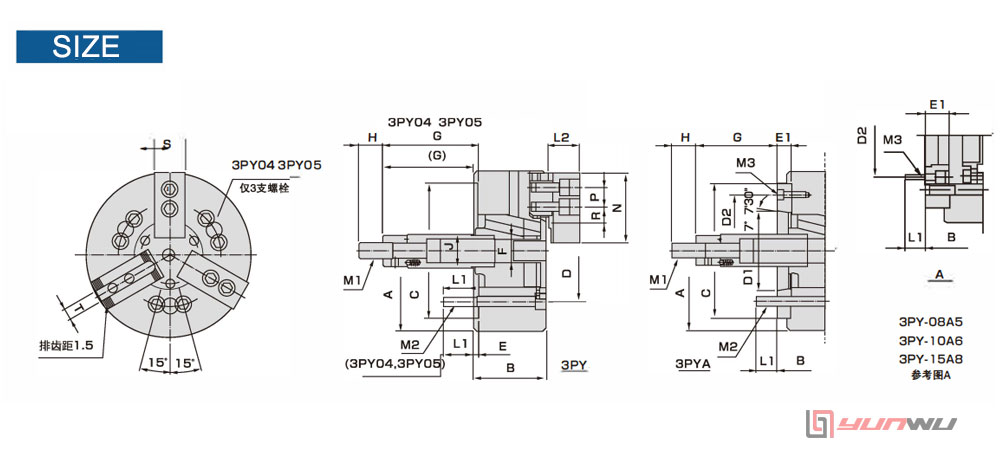

3 Jaw Independent Chuck size

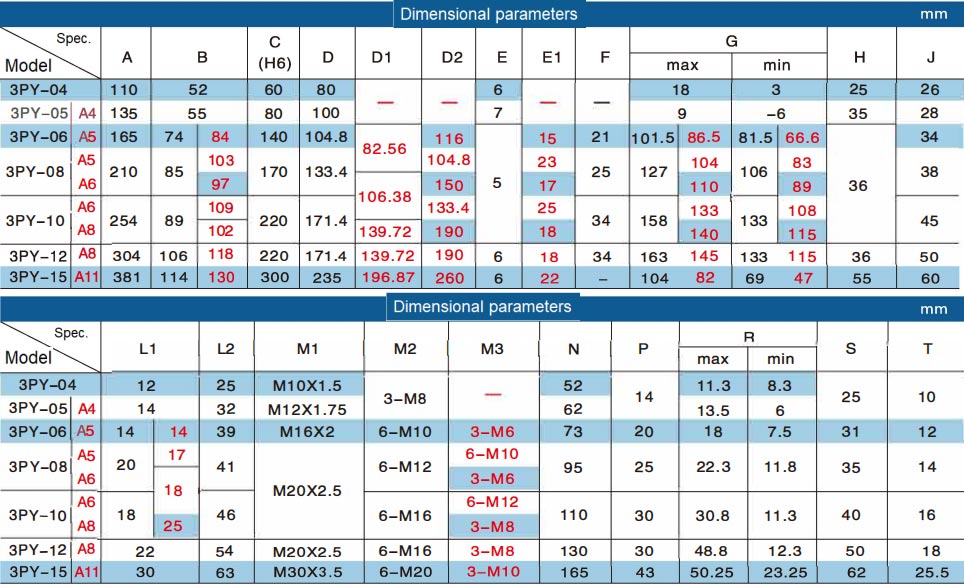

Dimensional parameters Of 3 Jaw Independent Power Chuck

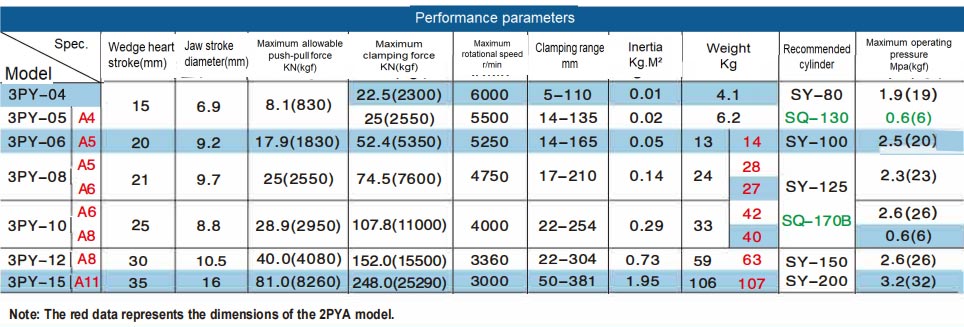

Performance Of 3 Jaw Independent Chuck
