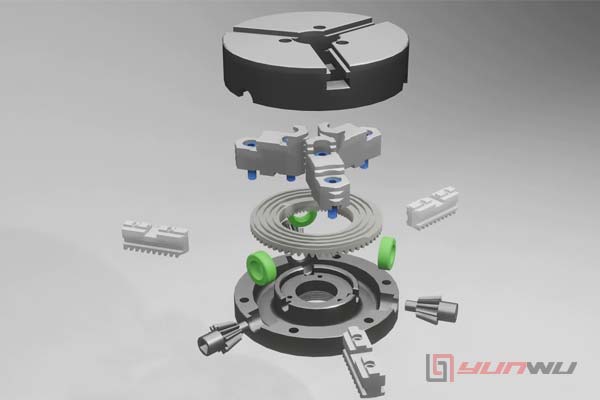

A 3 jaw self-centering chuck mechanism operates by simultaneously moving three jaws radially inward or outward to grip a workpiece centrally and securely. The key component enabling this is a scroll plate with spiral grooves that engage with the jaws, all linked so that turning a single pinion or gear causes all three jaws to move together and center the workpiece automatically.
Here’s the detailed mechanism:
The three jaws are mounted inside the chuck body, spaced 120 degrees apart. Each jaw fits into guide slots but can slide radially.
A scroll plate inside the chuck has spiral grooves meshing with teeth on the back of each jaw.
When the operator rotates the pinion gear, it turns the scroll plate.
The spiral grooves on the scroll plate convert rotational motion into synchronized radial movement of all jaws.
Because the jaws move equally, the workpiece is clamped concentrically (self-centering).
The jaws simultaneously engage the workpiece’s outer or inner diameter, depending on their design.
This mechanism allows quick, repeatable, accurate centering and holding of cylindrical or hexagonal workpieces for machining.
Additional details:
The jaws have threaded teeth that match the scroll plate's spiral.
Rotation of the pinion through the scroll plate moves the jaws either inward to clamp or outward to release.
Typical 3 jaw chucks are attached to lathe spindles and are used extensively in turning operations.
There are manual versions (turned by hand using a chuck key) and power-actuated versions (using pneumatic or hydraulic systems).
The mechanism is optimized for round or hexagonal shapes but less flexible than 4-jaw independent chucks which adjust jaws independently.
In summary, the 3 jaw self-centering chuck mechanism works through a spiral scroll plate actuated by a pinion gear, which moves three jaws simultaneously for quick and accurate centering and gripping of workpieces during machining
