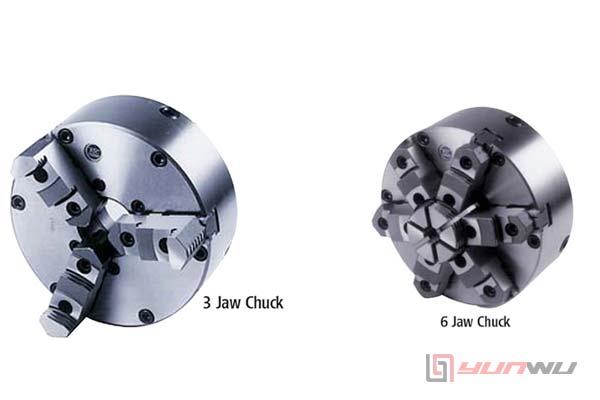

3-jaw chuck generally provides stronger clamping force than a 6-jaw chuck because the chuck body and mechanism are stronger with fewer jaws, allowing more clamping pressure. However, a 6-jaw chuck offers more uniform support around the workpiece with smaller gaps between jaws, which helps to minimize distortion, especially on thin or delicate parts like pipes and tubes.
Key differences and considerations between 3-jaw and 6-jaw chucks include:
| Feature | 3-Jaw Chuck | 6-Jaw Chuck |
|---|---|---|
| Clamping Pressure | Higher clamping force due to stronger body | Lower clamping force because of weaker body |
| Workpiece Holding | Good for rough or slightly out-of-round stock | Better for thin, precise, or delicate work to reduce distortion |
| Self-centering | Usually self-centering for faster setup | Usually self-centering, but less common and generally more expensive |
| Price | Generally less expensive | More expensive, considered a specialty chuck |
| Versatility | Common for general use, quick to set up | Often used as a supplement for specific tasks requiring less distortion |
| Suitable for Short Parts | Less accurate and may deform short parts more | Can more accurately grip short parts, faster to set up for these |
Practical reports and user feedback suggest a 6-jaw chuck is preferred when you want to delicately hold thin or small diameter pieces without distortion, such as gun barrels or tubes. The 3-jaw chuck is often the first choice for quick and strong holding of round or slightly irregular stock.
In summary, a 3-jaw chuck is typically stronger and cheaper with quicker operation, making it the common default. A 6-jaw chuck, while generally weaker in clamping force and costlier, is advantageous for holding thinner, more fragile, or precise parts with less distortion.
If you work mostly with thicker, standard round stock, a 3-jaw chuck suffices. For precision or delicate thin-walled work, a 6-jaw chuck provides benefits worth the added cost
