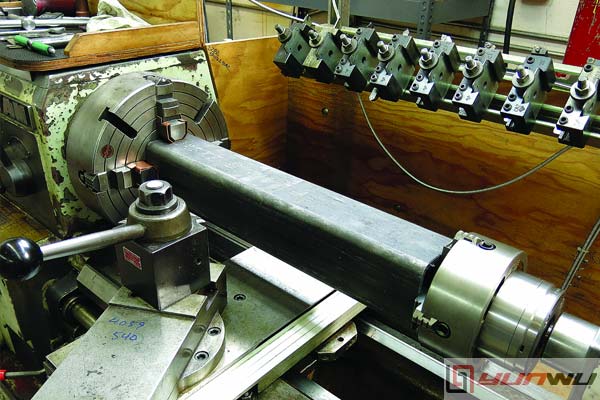

A 4-jaw chuck is a crucial accessory for a lathe, offering several key advantages that expand the types of operations and workpieces a lathe can handle. Below are the main reasons why a lathe needs a 4-jaw chuck:
Accommodates Irregular Shapes> : Unlike a 3-jaw self-centering chuck, which primarily holds cylindrical objects, a 4-jaw chuck can grip square, rectangular, hexagonal, or irregularly shaped workpieces due to the independent adjustment of each jaw.
Better for Non-Symmetrical Parts: The ability of each jaw to move separately makes it possible to securely hold non-cylindrical or eccentric workpieces that cannot be centered in a 3-jaw chuck.
High Accuracy and True-Centering: By individually adjusting each jaw, you can dial in the workpiece with high accuracy, minimizing runout and aligning the exact center of the workpiece with the lathe axis. This is critical for precision machining and concentricity.
Off-Center Turning : The independent jaws also allow intentional off-center (eccentric) mounting of a workpiece, which is needed for certain specialized turning operations.
Increased Holding Power : The four contact points allow for a stronger and more stable grip, especially useful when turning odd shapes and when high cutting forces are involved.
Reliable for Heavy and Irregular Loads: Secure holding reduces the risk of the workpiece slipping or coming loose during machining, which improves both safety and cutting quality.
Square and Hexagonal Stock : Essential for machining stock that isn't round, which is common in many engineering and repair tasks.
Wider Material Compatibility : Enables work on a variety of workpieces and materials that are not suitable for standard 3-jaw chucks
A 4-jaw chuck is indispensable for any lathe operator seeking maximum versatility, accuracy, and safety. It is needed to:
Hold workpieces that are not round,
Accurately true up any shape,
Perform eccentric machining,
Achieve higher gripping strength.
While setup is slower than with a 3-jaw chuck, the expanded possibilities and precise control make it an essential tool in machining.
