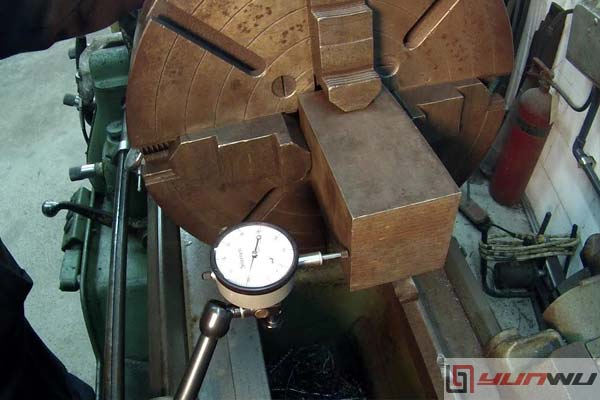

Centering square stock in a 4-jaw chuck is a precise process often used in metalworking to ensure the workpiece is positioned perfectly for turning. Here are the recommended methods, based on expert sources:
Insert Square Stock and Eyeball Alignment
Place the square bar roughly in the center of the 4-jaw chuck.
Tighten the jaws lightly, using the face grooves as a visual guide for rough alignment.
Set Up a Dial Indicator
Attach a dial indicator to the lathe, positioning it so the plunger contacts one flat (or one corner) of the square stock.
Zero the dial indicator at your starting position.
Center Using Opposed Jaw Pairs
Rotate the chuck 180°, reading the indicator's deviation.
Adjust the opposing jaws so the runout is corrected by half the indicated amount. Repeat as necessary.
Repeat this process for the other two jaws, again treating each pair as opposites.
Final Checks
Continue minor adjustments until the dial indicator shows minimal runout as you rotate the chuck.
Ensure all jaws are securely tightened once centered.
Use a Reference Round Bar
First, mount a round bar whose diameter matches the "across flats" dimension of your square stock in the 4-jaw chuck. Center it precisely using the dial indicator.
Loosen two jaws, remove the round bar, and insert the square bar. Tighten those same two jaws—the square should now be nearly or perfectly centered.
Work with small, incremental jaw adjustments, especially for final centering.
When using a dial indicator on corners rather than flats, take care to avoid damaging the indicator tip.
Always recheck that all jaws are snug before machining begins, as tightening can cause slight shifts.
Failing to alternate adjustments between opposing jaw pairs.
Starting with jaws overly tight, as this can impede fine adjustment.
Ignoring a final runout check after all jaws are locked down.
| Method | Steps Involved | Precision | Notes |
|---|---|---|---|
| Manual with Dial Indicator | Eyeball, then adjust using dial readings on flats/corners | Highest | Standard machinist's method |
| Round Bar Reference | Center round, swap for square, retighten jaws | Very Good | Fast for similar size workpieces |
By following these techniques, you can achieve precise centering of square stock in a 4-jaw chuck using standard shop tools and methods
