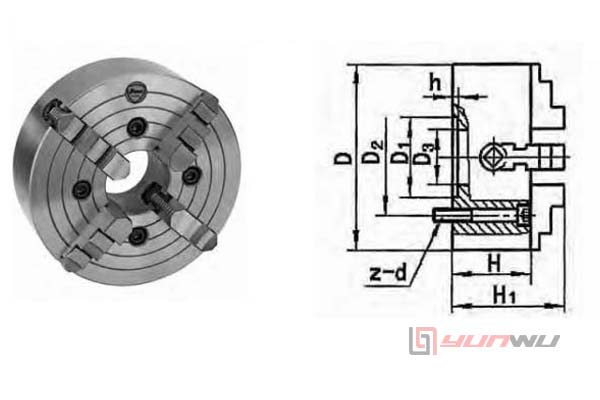

A 4-jaw independent chuck is a common workholding device used on lathes, especially valued for its versatility and precision. Here’s how you can identify one:
The chuck has four jaws—one at each quadrant around the face.
Each jaw moves independently. This is the main distinguishing feature:
Each jaw has its own adjustment screw and operates independently from the others.
Unlike self-centering or scroll chucks (where all jaws open and close simultaneously), you adjust each jaw one at a time with a chuck key or wrench.
There are four holes for the chuck key—one for each adjustment screw directly behind each jaw. This allows you to control each jaw individually.
The 4-jaw independent chuck lacks a central scroll mechanism (the plate inside that moves all jaws together). Instead, jaws ride in separate channels and are moved by separate screws.
4-jaw independent chucks are typically used for:
Holding irregularly shaped, square, hexagonal, or off-center workpieces.
Jobs requiring precise centering or deliberate off-center holding.
Higher accuracy than typical 3-jaw scroll chucks (can achieve accuracy as fine as 0.001 inch or better, compared with about 0.010 inch for a 3-jaw)
When examining a chuck, look for:
Four clearly separate jaws.
Four access points for a chuck key.
Absence of interlinked jaw movement when any single adjustment screw is turned.
Some chucks have reversible jaws that can be flipped to hold work internally or externally.
Chucks may have different mounting types (long-nose tapered, threaded, etc.) but the independence of jaw movement is the signature trait.
| Feature | 3-Jaw Scroll Chuck | 4-Jaw Independent Chuck |
|---|---|---|
| Number of Jaws | 3 | 4 |
| Jaw Movement | All jaws move together | Each jaw moves independently |
| Adjustment Points | 1 keyhole | 4 keyholes |
| Main Use | Round/hex stock, speed | Irregular, square, precision |
| Centering Accuracy | ~0.010 in (0.25 mm) | Up to 0.001 in (0.025 mm) |
Count the jaws : Should be four.
Try to move one jaw : It should move without affecting the others.
Check for separate adjustment holes: Should be one behind each jaw.
Look for lack of a scroll plate/mechanism inside the chuck.
If all these conditions are met, you have a 4-jaw independent chuck
