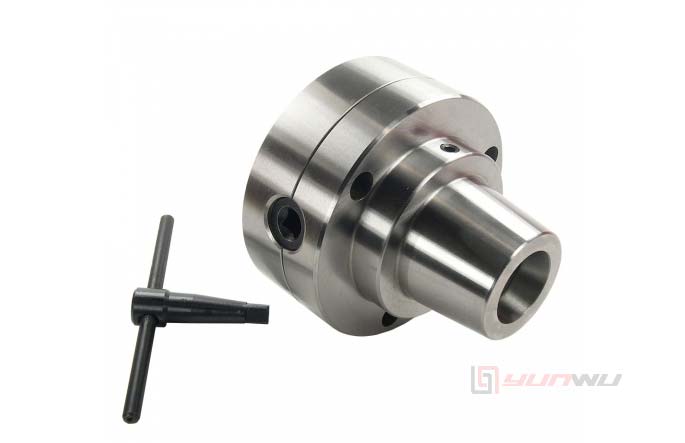

A 5C collet chuck is a type of chuck used in machining to hold cylindrical workpieces or tools securely during operations such as milling, turning, grinding, drilling, and milling. It is a subtype of chuck that uses a 5C collet—a segmented, tapered sleeve with internal threads that match a drawbar for quick and easy installation and removal of workpieces.
Key features and uses of a 5C collet chuck include:
It provides high precision and exceptional concentricity, improving setup speed compared to traditional three-jaw chucks.
It typically holds workpieces with diameters around 1 inch (25 mm), with a clamping range extending up to approximately 1.125 inches (28.5 mm).
The collet chuck works by pulling the tapered collet into the chuck body using a drawbar, causing the collet to contract radially and clamp onto the workpiece.
5C collets and chucks are widely used in various precision machining operations on lathes, milling machines, grinding machines, and other equipment.
The system is known for fast and strong clamping action, smooth operation, and the ability to maintain tight tolerances and fine surface finishes.
Made typically of steel or brass, 5C collets are precision ground for reliability and durability.
They are suited for holding small to medium cylindrical parts and are compatible with a wide range of 5C chuck equipment and tooling.
Overall, a 5C collet chuck is an essential toolholding solution for machinists demanding accuracy, repeatability, and quick workpiece changes in a variety of machining processes.
