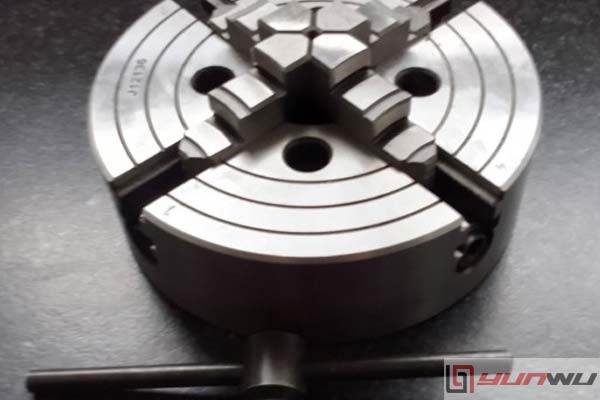

Given your experience and enjoyment in metalworking—especially with centering various shapes—the 4-jaw chuck can be a highly valuable addition to your lathe setup.
Versatility : Unlike a 3-jaw, the 4-jaw chuck allows you to securely hold not just round materials but also irregular, square, or rectangular workpieces. Each jaw moves independently, so you can center nearly any shape—an important advantage for custom knife handle work or unique projects.
Precision : The independent adjustment of each jaw means you can dial in your workpiece for maximum concentricity, which is essential for high-accuracy tasks. This makes it possible to achieve finer tolerances than with a self-centering 3-jaw chuck.
Off-Center and Eccentric Turning: The 4-jaw chuck excels at holding parts off-center, enabling techniques like eccentric turning or offset drilling—something a 3-jaw cannot do.
Stronger Grip : The design offers greater holding power for awkward or heavy workpieces, which could be beneficial if you occasionally work with tough or unevenly shaped steel.
If most of your projects use only round, symmetrical stock and speed is your primary concern, a 3-jaw chuck is quicker and easier to operate. The 3-jaw is ideal for repetitive tasks where parts require only basic centering and not extreme accuracy.
Centering a piece in a 4-jaw takes longer, as each jaw must be adjusted individually. For production runs of uniform round stock, this may slow you down.
| Feature | 3-Jaw Chuck | 4-Jaw Chuck |
|---|---|---|
| Centering | Self-centering (quick) | Manual, highest precision |
| Shape Holdings | Round only | Round, square, irregular |
| Off-Center Work | Not possible | Possible |
| Setup Speed | Fast | Slower |
| Precision | Good, not perfect | Excellent |
Since you enjoy centering various shapes—particularly for custom work like knife handles and rivets—a 4-jaw chuck will significantly broaden your capabilities and allow you to tackle more complex and unique projects. It’s a core accessory for precision metalworkers and those working with irregular stock, making it highly recommended for your interests.
If your budget or workspace allows, keeping both a 3-jaw and a 4-jaw chuck on hand gives you the greatest flexibility for any type of lathe operation
