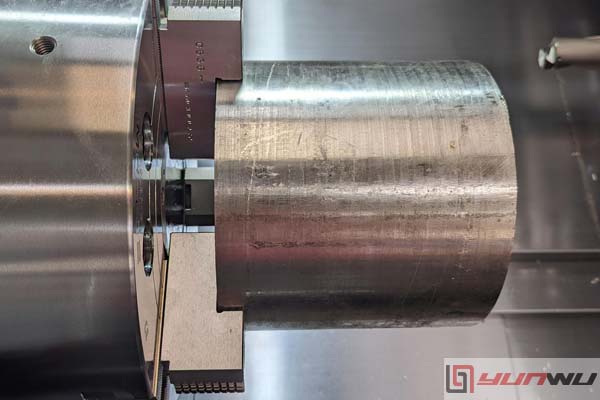

Centering round stock in a 4-jaw independent chuck is a fundamental but precise task in lathe work. The procedure can seem daunting, but with the right method and a dial indicator, you can achieve accurate results quickly.
4-jaw independent chuck
Dial indicator with a magnetic or flexible base
Chuck key
Place the round stock in the 4-jaw chuck.
Use the grooves or rings on the face of the chuck body to visually align the workpiece as closely as possible to the center.
Gently tighten each jaw alternately to hold the piece, ensuring it's not yet fully locked down.
Attach the dial indicator so its plunger contacts the outside diameter of the round stock.
Rotate the chuck by hand to see the indicator reading around the circumference of the workpiece.
Note the highest and lowest readings; these indicate the runout (how far off-center the stock is).
Rotate the chuck to find the maximum (high) and minimum (low) indicator readings.
Adjust the jaws closest to the high and low points:
Loosen the jaw at the high point and tighten the opposite jaw equally, watching the indicator to move toward zero runout.
Alternate between the pairs of opposing jaws, making small corrections:
Adjust one axis (pair of jaws), then rotate 90 degrees and adjust the other axis.
Each adjustment may slightly affect previous corrections. Rotate the chuck and check the indicator again after each adjustment.
Repeat the process, making finer adjustments, until the dial indicator shows minimal or no runout. Experienced users can typically get within ±0.001" quickly.
Once centered, securely tighten all jaws, ensuring the stock does not shift. Re-check the runout after tightening, and make further micro-adjustments if needed.
Always adjust jaws in small increments to avoid overshooting the center.
For very precise centering, finish with fine adjustments and recheck after final tightening.
Practice will significantly reduce the time needed for this process.
| Step | Action | Key Tool |
|---|---|---|
| 1. Rough Alignment | Visually align stock and gently clamp | Chuck key |
| 2. Set Indicator | Attach indicator, rotate to check runout | Dial indicator |
| 3. Adjust Jaws | Tweak opposing jaws towards indicator zero | Chuck key, indicator |
| 4. Check & Repeat | Rotate and readjust until minimal runout | Dial indicator |
| 5. Final Tightening | Clamp firmly and recheck center | Chuck key |
Centering round stock in a 4-jaw chuck is a methodical process of rough positioning, fine-tuning with a dial indicator, and iterative correction until perfect or near-perfect alignment is achieved
