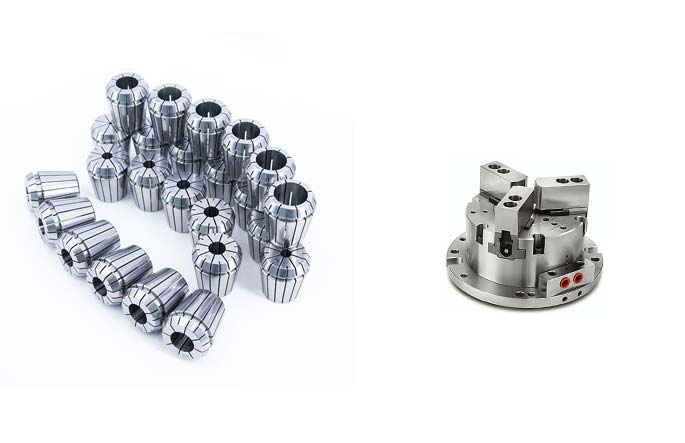

The key differences between a collet and a chuck are in their design, precision, versatility, and typical applications:
Design:
A collet is a cylindrical metal sleeve with slits along its length that allows it to compress radially to grip a tool or workpiece uniformly around its circumference. It is sized for specific diameters for a snug fit.
A chuck is a mechanical device with jaws or clamps (e.g., three-jaw, four-jaw) that grip various shapes and sizes of workpieces or tools. It is generally larger and more versatile in range.
Precision and Concentricity:
Collets provide high precision and excellent concentricity, making them ideal for high-speed and demanding machining where accuracy is critical.
Chucks offer good gripping force and versatility but may have slightly lower precision and repeatability compared to collets, especially at high speeds.
Application:
Collets are typically used for holding cylindrical tools or workpieces with specific diameters in applications like milling, drilling, grinding, and high-speed machining.
Chucks are used for a broader range of tasks including turning, drilling, boring, and can hold round, square, or irregularly shaped workpieces.
Usability:
Changing collets can be slower and each collet fits a narrow range of sizes.
Chucks allow quick tool changes and accommodate a wider variety of sizes and shapes but may be heavier and less compact.
Other considerations:
Collet chucks provide 360-degree contact for superior grip and less vibration.
Chucks may have key-operated or keyless mechanisms to open/close jaws.
In summary, collets excel in precision and secure, uniform gripping for specific sizes, while chucks offer greater versatility and flexibility for various shapes and sizes but with potentially less precision.
