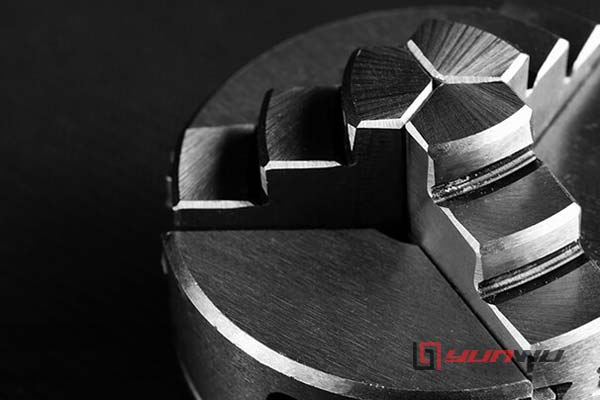

The typical total indicator runout (TIR) for a good quality 3 jaw chuck is generally in the range of about 0.001" to 0.003" (0.025 to 0.076 mm). A runout of around 0.003" is considered workable for normal use, while achieving better than 0.001" is quite good. Many standard 3 jaw chucks advertise runout around 0.003" TIR.
In practice, lower-cost or worn 3 jaw chucks often have larger runout values, sometimes exceeding 0.010" or more, but higher quality or precision chucks aim to keep runout below 0.003". If extremely precise concentricity is required, a 4 jaw independent chuck or collet chuck is usually recommended instead of relying on a 3 jaw.
To summarize approximate typical indicators:
High quality new or well-maintained 3 jaw chuck: ~0.001" to 0.003" total indicator runout
Typical best achievable after jaw adjustments or dressing: ~0.0005" to 0.0025"
Runout beyond 0.010" is generally considered high and requires further adjustment or chuck replacement
Thus a commonly accepted practical range for total runout on a 3 jaw chuck is about 0.001" to 0.003".
If you require more precise centering, options include tuning the chuck jaws by grinding or shimming or switching to a 4 jaw independent chuck or collet chuck
